In this post, let’s identify the working properties of Testron’s top Oxygen permeability testers, such as the TT-OTR100 and TT-OTR300, and evaluate the features and the basic technical specifications.

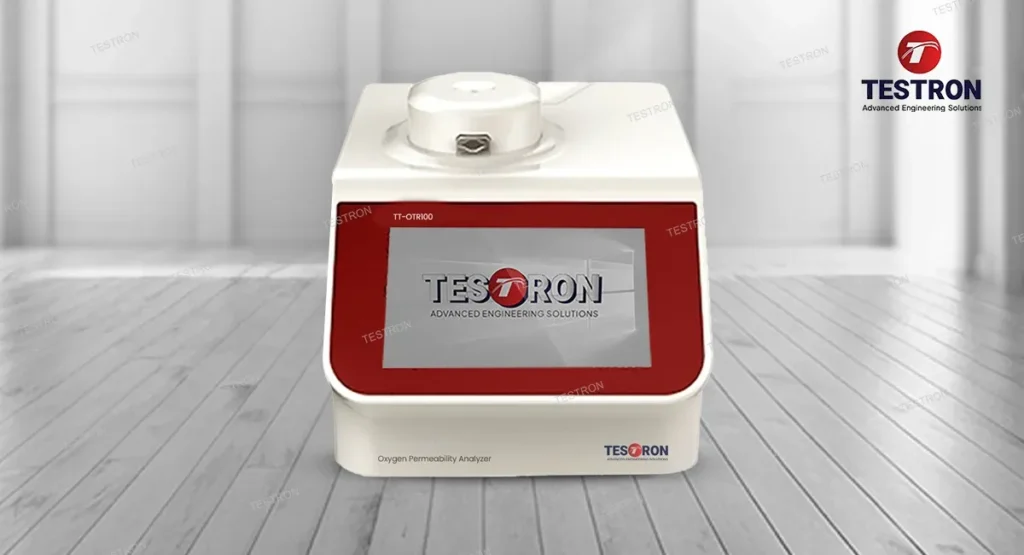

Testron TT-OTR300 and TT-OTR100 Oxygen Permeability Testers are based on the Coulomb oxygen analysis sensor test principle, and are manufactured to determine the oxygen transmission rate in film or sheet materials. This blog will look into the working principle and the applications of the instrument in packaging industries globally.
Technical Specifications of Testron Group’s TT-OTR100 and TT-OTR300 Oxygen Permeability Tester
Here is a look at the technical parameters of Testron Group’s Oxygen Permeability Testers and how these parameters support their functioning. This evaluation will focus on the specifications of both the instrument models.
The Technical Specifications of the TT-OTR100
At first, let’s look into the technical parameters of the TT-OTR300 Oxygen permeability analyzer. The following is a chart exploring these parameters:
| Model | TT-OTR100 |
| Testing range | 0.01-1000 cm3/(m2-24h-0.1MPa) |
| Repeatability | 0.01 or 2%, whichever is larger |
| Resolution | 0.0001 cm3/(m2-24h-0.1MPa) |
| Temperature control range | 15~45°C |
| Temperature control accuracy | ±0.1°C |
| Humidity range | 0%RH, 5-90%RH, 100%RH |
| Humidity Control Accuracy | ±2%RH |
| Permeable area | 50.24 cm2 (custom fittings, down to 0.785 cm2) |
| Sample size | ⌀100 mm |
| Sample thickness | ⩽3mm |
| Number of samples | 1 pc |
| Carrier gas flow | 5-100 mL/min |
| Carrier gas pressure | ⩾0.1MPa |
| Pneumatic pressure | ⩾0.3MPa |
| Dimensions | 380 mm×620mm×385 mm |
| Power | 450W |
| Power supply | AC 220V, 50Hz |
Table 1: Technical Specifications of the TT-OTR100
Therefore, with these specifications, the TT-OTR100 Oxygen permeability test apparatus can offer the top-notch ability of determining oxygen transmission rates in film or sheet packing materials.
The Technical Specifications of the TT-OTR300
Alternatively, in this segment, let’s take a look at the technical parameters of the TT-OTR300 Oxygen permeability tester:
| Model | TT-OTR300 |
| Test range | 0.01~1000 cm³/(m²-24h 0.1MPa) |
| Repeatability | 0.01 or 2%, whichever is greater |
| Resolution | 0.001 cm3/(m2-24h-0.1MPa) |
| Temperature control range | 15~45°C |
| Humidity Control range | 0%RH, 5~90%RH, 100%RH |
| Humidity Control Accuracy | ±2%RH |
| Permeable area | 50.24 cm2 (custom fittings, min to 0.785 cm2) |
| Sample size | $100 mm |
| Sample thickness | $3mm |
| Number of samples | 3 pcs |
| Carrier gas pressure | ⩾0.1MPa |
| Carrier gas flow | 5-100 mL/min |
| Pneumatic pressure | ⩾0.3MPa |
| Dimension | 700mm*655mm*390mm |
| Power | 750W |
| Power supply | AC 220V, 50Hz |
Table 2: The Technical Specifications of the TT-OTR300
Therefore, with these configurations, the TT-OTR300 Oxygen permeability testing machine not only provides the top-quality measurement, but it also helps improve accuracy and reliability for the global packaging industry.
Features of Testron’s Oxygen Permeability Analyzer
So, what makes Testron a top Oxygen permeability tester manufacturer? It’s the features of its instruments. These instruments are always manufactured with features in mind that make them extremely reliable, while also ensuring that they offer results with the utmost accuracy. These features include:
Features of the TT-OTR100 Oxygen Permeability Analyzer
The features of the TT-OTR100 Oxygen permeability testing machine include:
- It comes with a patented core technology, efficiency, and accurate testing. This promotes convenience and labor-saving, and can have excellent sealing performance.
- It also offers automatic and humidity precision control.
- It also meets the test requirements of a wide range and high applicability.
- The Oxygen permeability analyzer offers an excellent appearance, operational convenience, and a real-time visualization curve.
- Its operating system is intelligent, and it has received a global certification.
- The calibration levels are professional, and the data is accurate and reliable.
- This instrument can be connected to the IoT platform that helps realize network digital management.
Alternatively, now let’s look into the features of the TT-OTR300 Oxygen Permeability tester.
Features of the TT-OTR300 Oxygen Permeability Analyzer
The features of the TT-OTR300 Oxygen permeability testing machine include:
- It offers accurate and reliable data, which is calibrated with national reference materials, ensuring reliable and standardized results.
- It simplifies the operation by using an LCD window interface, professional software with a simplistic UI, and fully automated operations.
- It also has advanced technological features such as temperature control and humidity control.
- The TT-OTR300 oxygen permeability tester offers highly independent data and offers testing of high barrier materials, and the test can range to 260000 cm3/m2⦁24h.
- The instrument can support two methods of reference materials and standard gas for certification and calibration.
- The instrument is also reliable and easy to maintain.
Therefore, it is these top-quality features that make Testron one of the best Oxygen permeability tester suppliers.
The Benefits of Testron’s Oxygen Permeability Tester Worldwide
So, let’s look into some of the key benefits of Testron’s Oxygen permeability testers among the global packaging industry leaders:
- It ensures product quality and safety with the accurate measurement of the oxygen transmission rate of packaging materials.
- This ability to evaluate and optimize the barrier properties of packaging materials directly can contribute to extending the shelf life of perishable goods, which can be a critical factor in global supply chains.
- The instrument is specifically designed to comply with the globally recognized standards to ensure that test results are credible and accepted by international regulatory bodies.
- The testers can analyze a wide range of packaging materials, such as plastic films, sheets, multi-layer laminates, and so on.
- The Oxygen permeability tester price is more affordable compared to the global industry standards.
The Compliance Aspects of Testron’s Oxygen Permeability Tester
The Oxygen permeability test apparatus by Testron Group operates according to the following testing and regulatory standards:
The TT-OTR100 follows the regulatory principles of:
ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, ISO 15105-2, DIN 53380-3, JIS K-7126-B.
Alternatively, the TT-OTR300 follows the regulatory principles of:
ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, ISO15105-2, DIN 53380-3, JIS K-7126-B, GB/T19789-2005, YBB00082003-2015
Final Verdict
The final verdict in this case is that in the global packaging industry, the TT-OTR100 and TT-OTR300 oxygen permeability testers have followed the principles of application, which simplifies the data for accuracy and reliability, advanced technology, as well as high efficiency in the overall functioning.
